Products Description

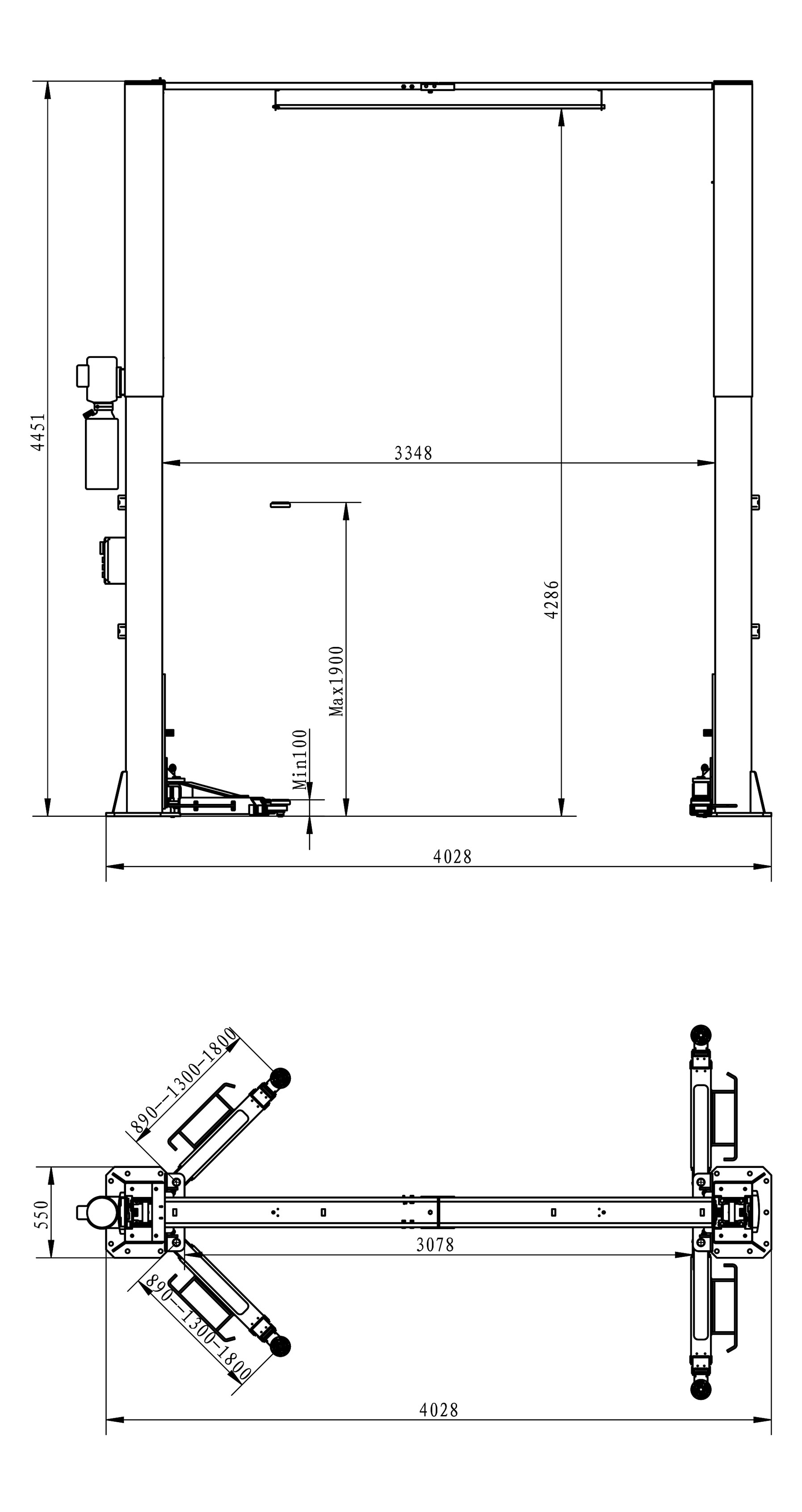

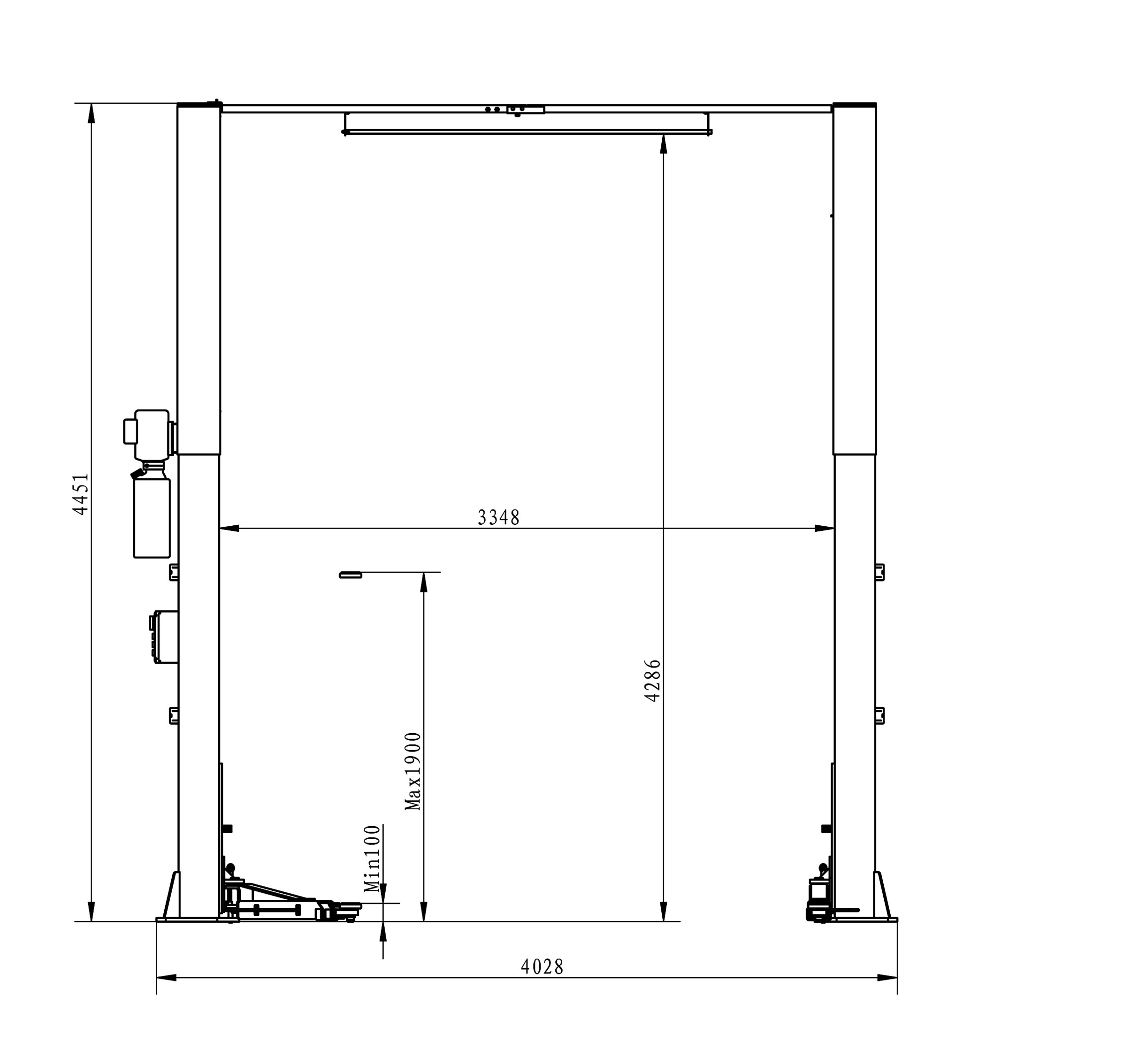

● Clear floor two post lift with 4451mm overall height;
● Solenoid lock release;
● Driving through width up to 3 meters;

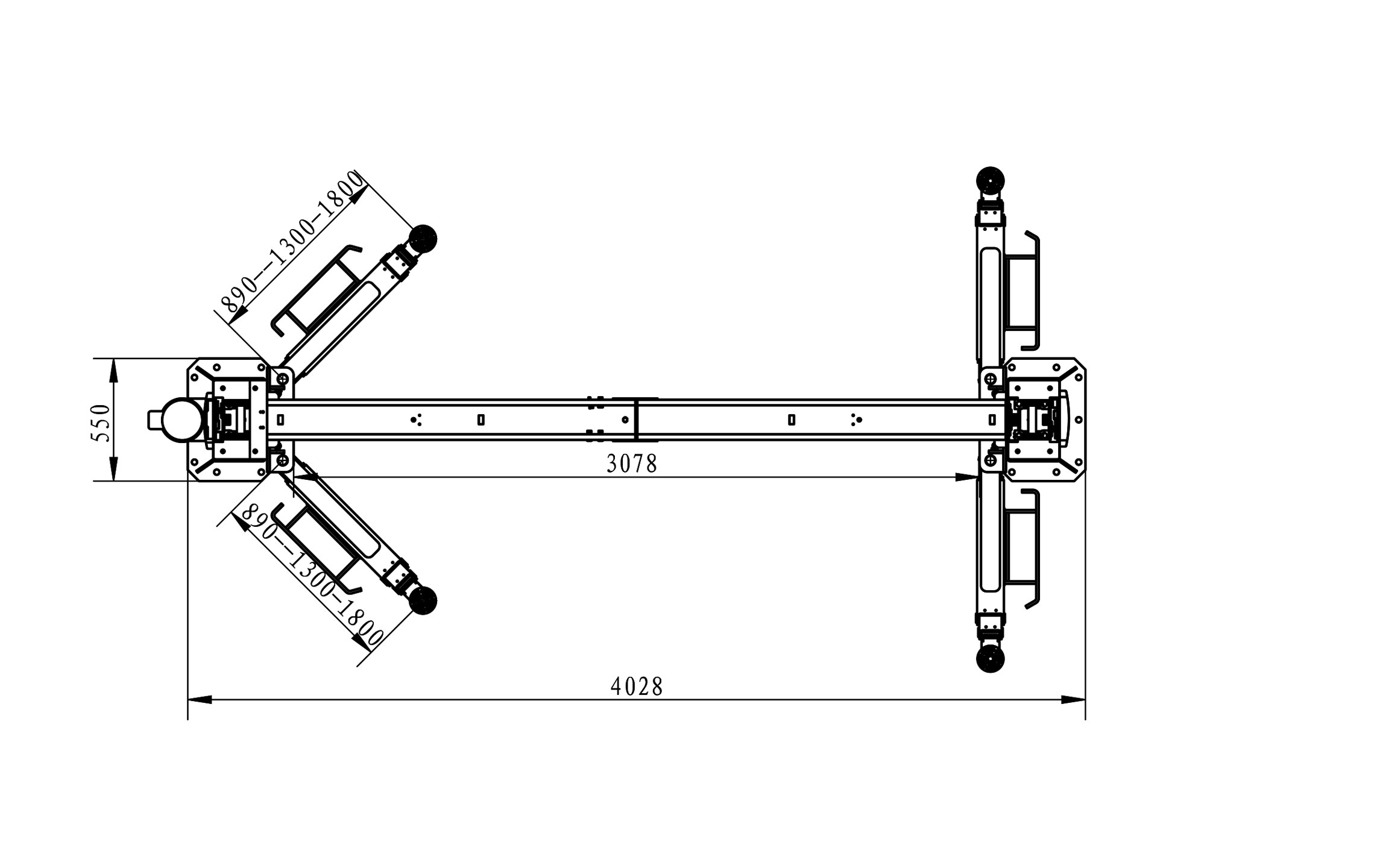

● 4 pcs 3 stage arms 890-1300-1800mm;
● Double cylinder, high strength chain drive system;
● Imported high quality cylinder seals;
● Heavy duty, stainless steel cables;
● ETL & CE Certified Power unit;
● CE certified by CCQS UK.
Tags:
Technical parameter
Model：SG-55UEH
Lifting Capacity： 5500KGS
Lifting Height： 1900mm
Min Lifting Height：100mm
Power of Motor：3.0kw
Oil Pressure：18Mpa
Power Supply：10-240V/380-415V 1/3PH, 50Hz/60Hz
Rise Time：50s
Lowering Time：40s
