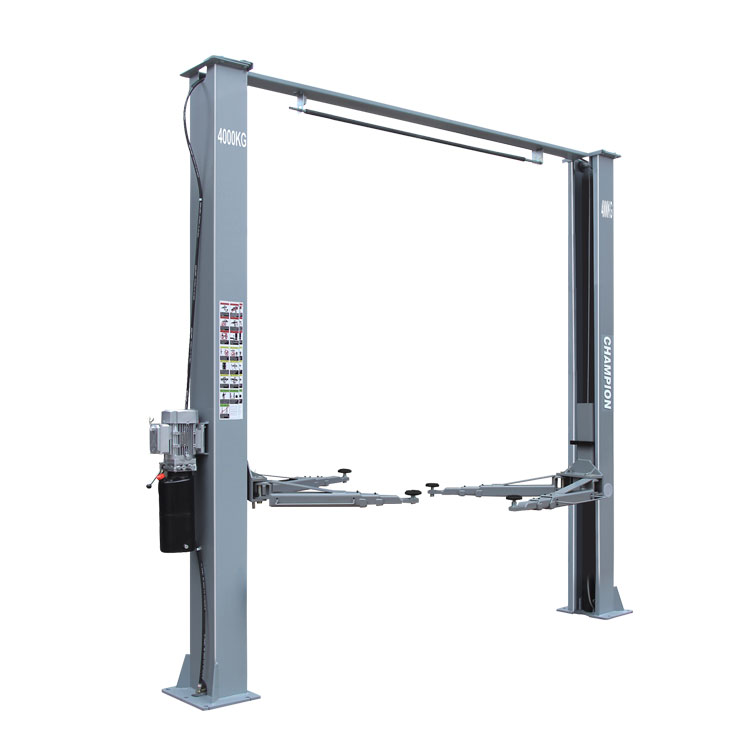

Products Description
● Top limit switch;
● Double side manual lock release;
● Double cylinder, high strength chain drive system;
● Imported high quality cylinder seals;
● Heavy duty, stainless steel cables;
● Optional 24V CE Standard small control box;
● Optional grey and black column cover;
● Optional anti-toe protection bar;
● ETL & CE Certified Power unit;
● CE certified by CCQS UK.
Tags:

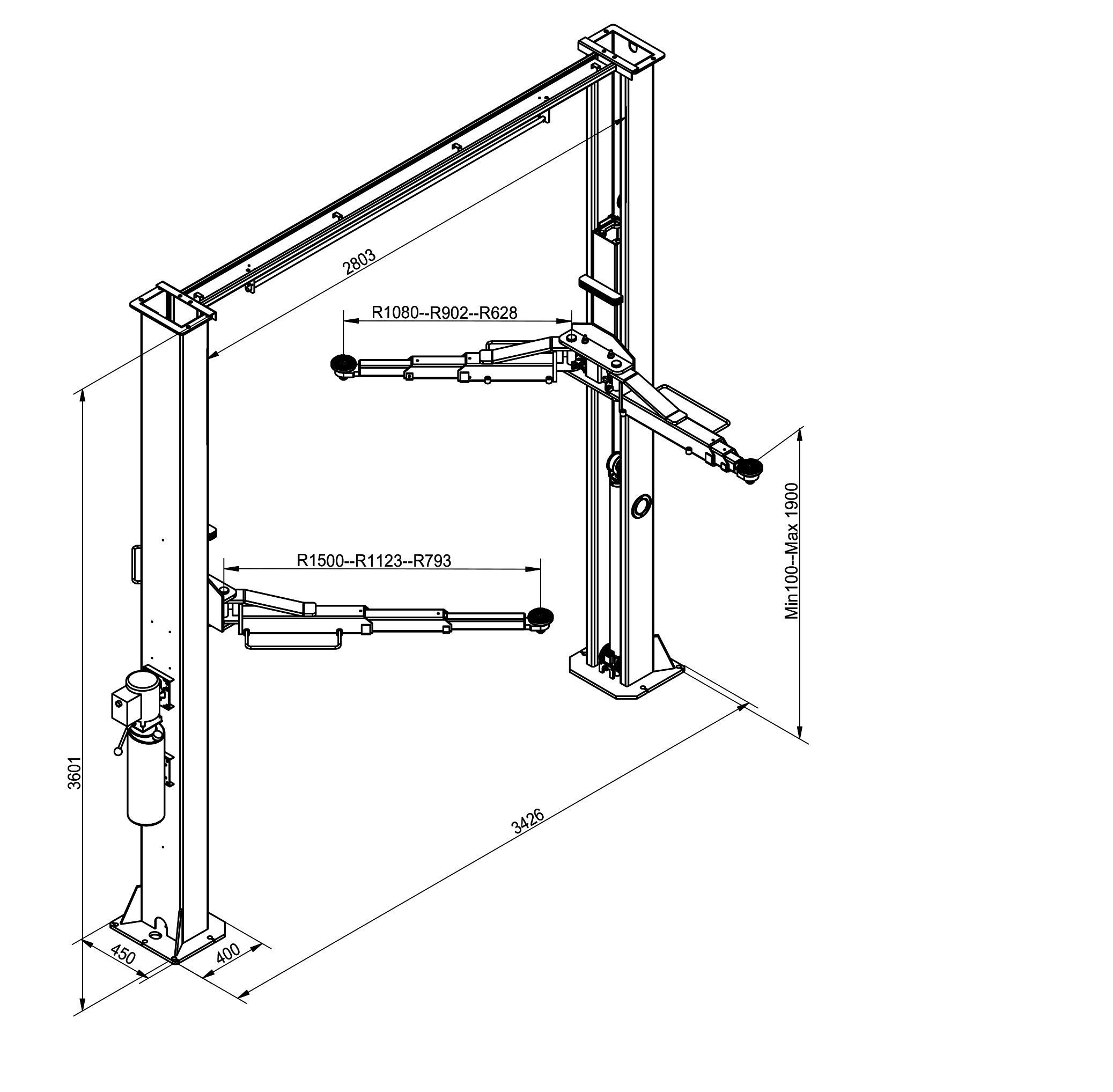

Technical parameter
Model：SG-40D
Lifting Capacity： 4000KGS
Lifting Height： 1900mm
Min Lifting Height：85-110mm
Power of Motor：2.2KW
Oil Pressure：18Mpa
Power Supply：10-240V/380-415V 1/3PH, 50Hz/60Hz
Rise Time：50s
Lowering Time：40s
