SG-40S

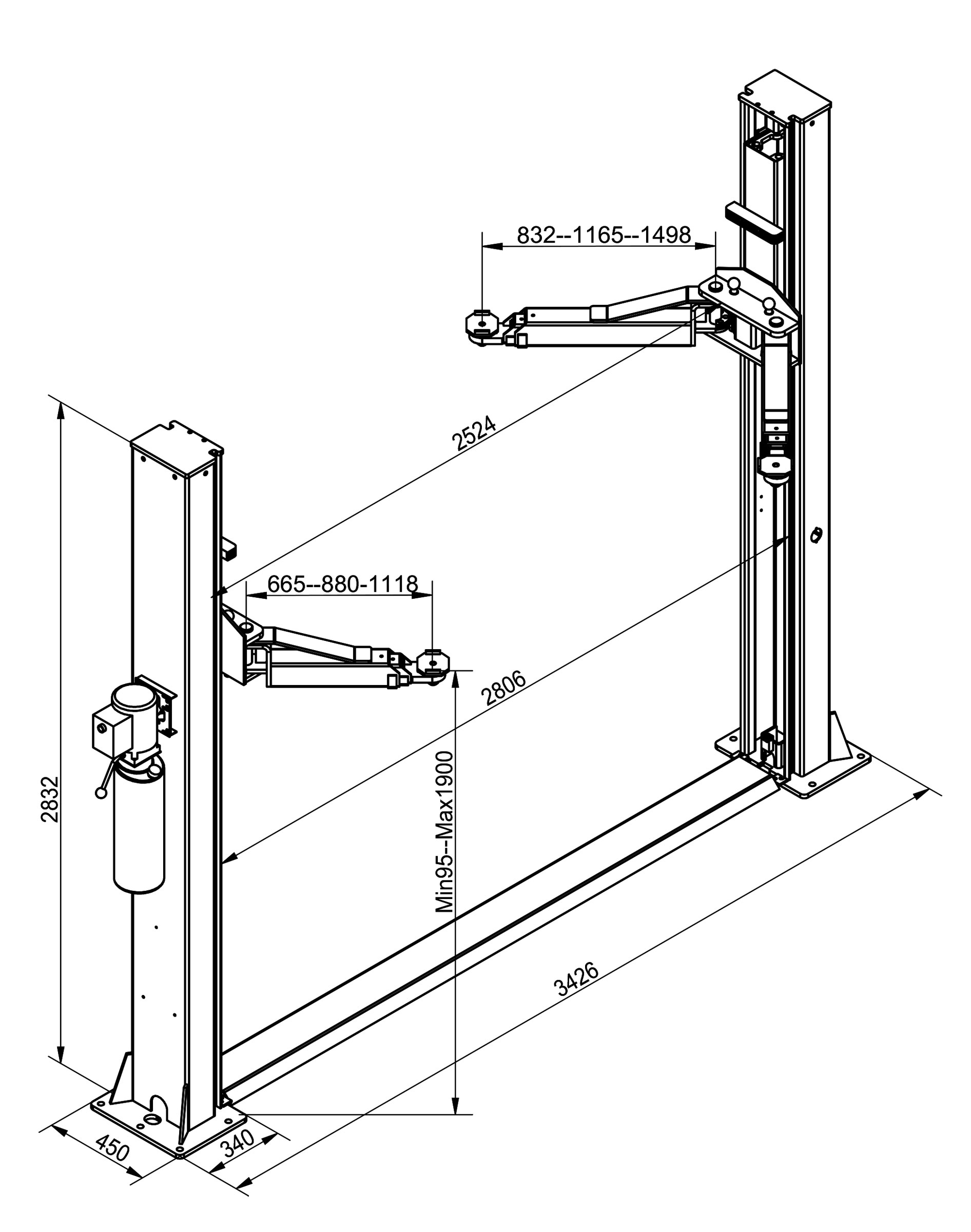

MANUAL RELEASE FLOOR PLATETWO POST LIFT
Description
Technical data
Products Description

● Floor plate two post lift,desigh for low roof service work shop;

● Double side manual lock release;

● Double cylinder, high strength chain drive system;

● Imported high quality cylinder seals;

● Heavy duty, stainless steel cables;

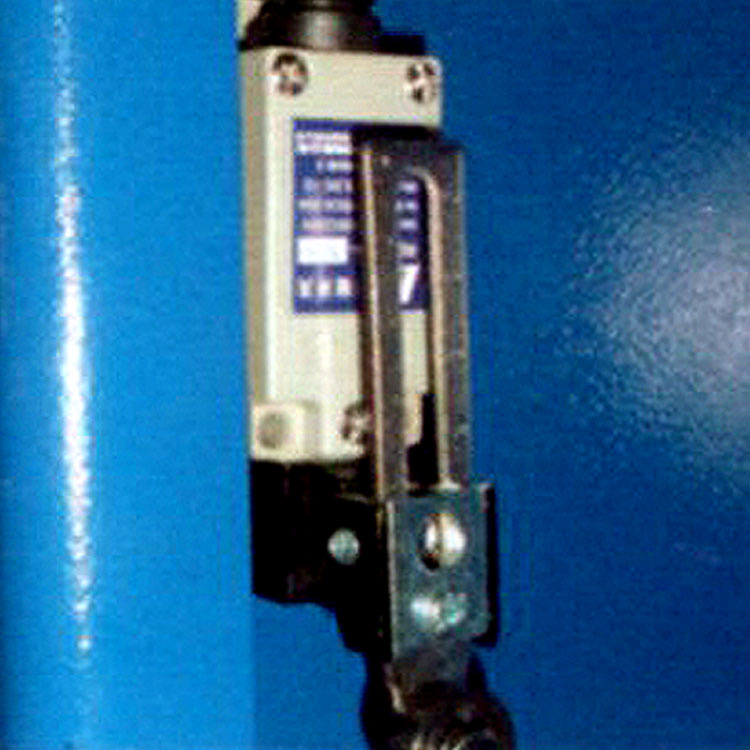

● Optional height limit switch;

● Optional 24V CE Standard small control box;

● Optional column cover.

● Optional anti-toe protection bar;

● ETL & CE Certified Power unit;

● CE certified by CCQS UK.


Tags:

Technical parameter

Model:SG-40S


Lifting Capacity: 4000KGS


Max Lifting Height:  1900mm


Min Lifting Height:85-110mm




Power of Motor:2.2KW


Oil Pressure:18Mpa


Power Supply:10-240V/380-415V  1/3PH, 50Hz/60Hz


Rise Time:50s


Lowering Time:40s
