Products Description
● 5500KG Capacity;
● 1100mm carriage;
● Drive through width over 3 meter;

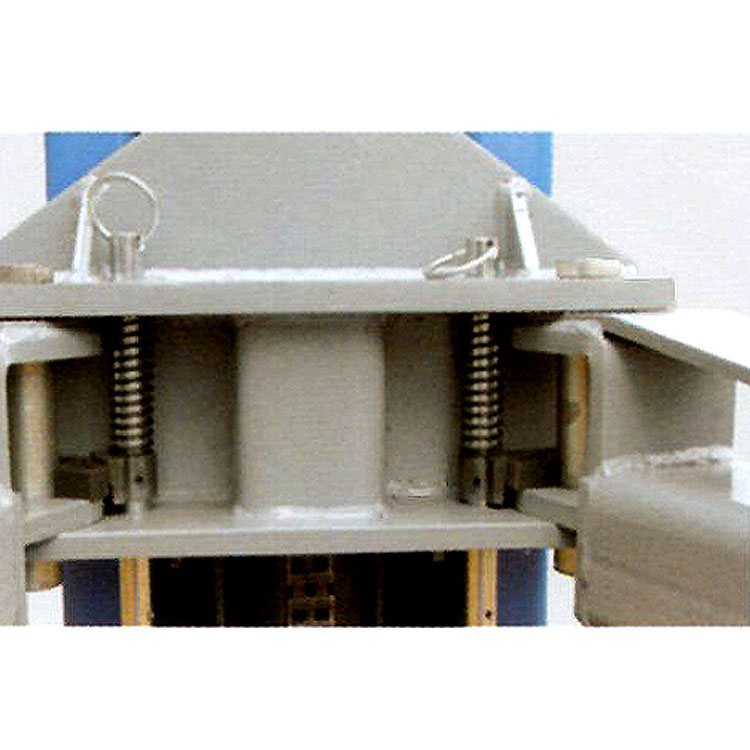

● Single side manual lock release;
● Double cylinder, high strength Chain drive system;
● Imported high quality cylinder seals;
● Heavy duly, stainless steel cables;
● Optional Height limit Switch;

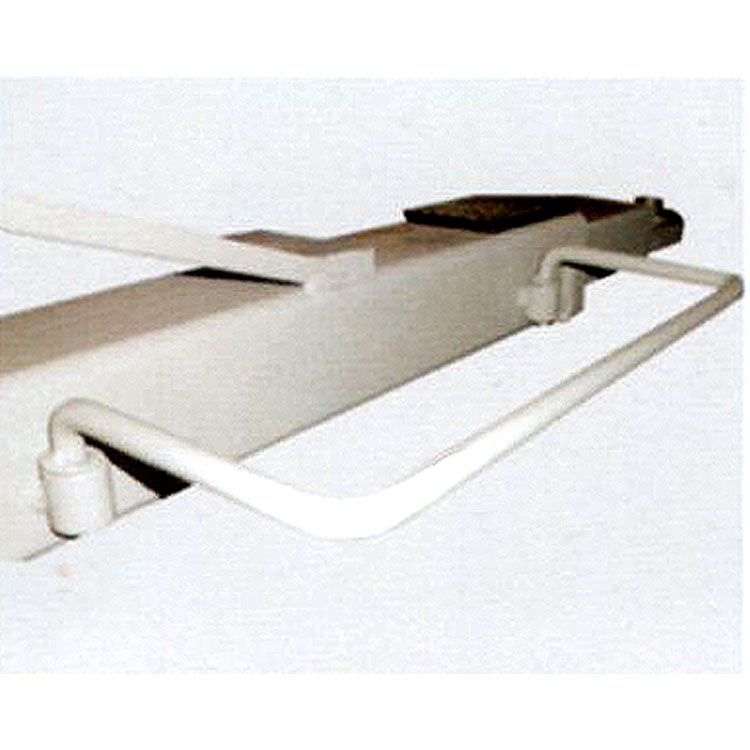

● Optional anti-toe protection bar;
● ETL & CE Certified Power unit;
● Optional truck adapters.
Tags:

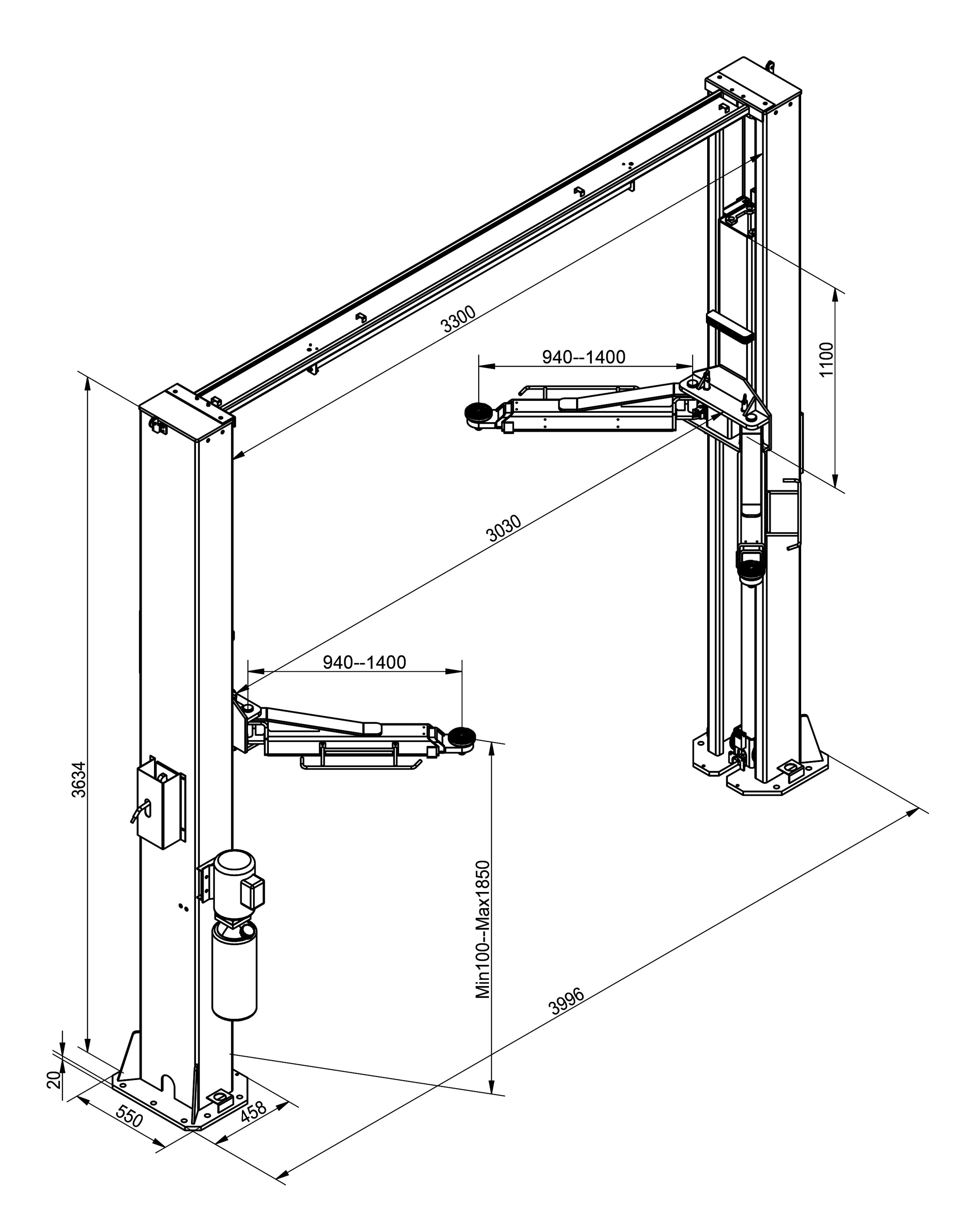

Technical parameter
Model：SG-55UMH
Lifting Capacity： 5500KGS
Lifting Height： 1850mm
Min Lifting Height：100mm
Power of Motor：3.0kw
Oil Pressure：18Mpa
Power Supply：10-240V/380-415V 1/3PH, 50Hz/60Hz
Rise Time：50s
Lowering Time：40s
