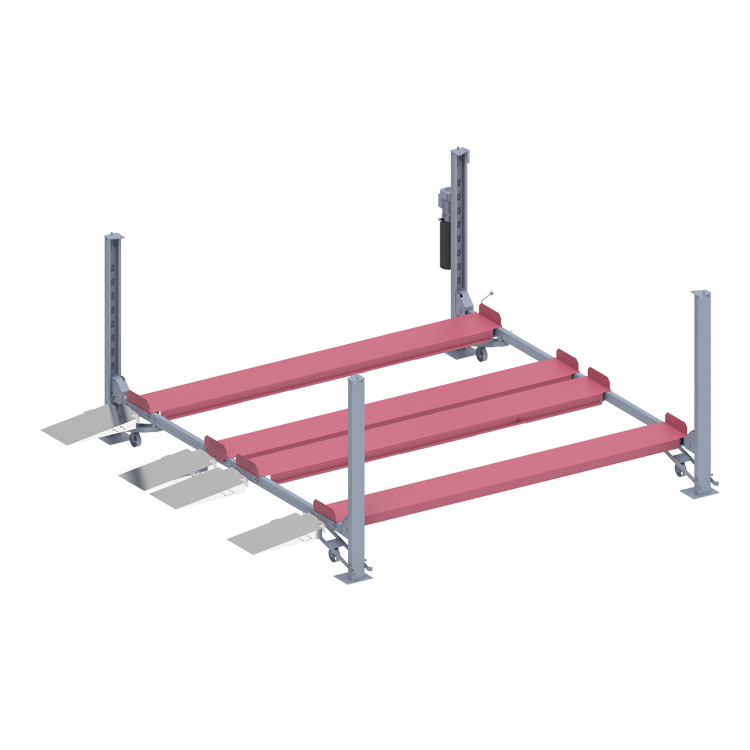

Products Description
● 3600KG capacity;
● economical version for home parking;
● High quality power coating finish;
● Heavy duty, stainless lifting cables;
● Single point manual release, quite convenient to operate;
● Steel approach ramps;
● Optional anti-surge valve in case of hydraulic hose burst;
● Cable anti-break device to double ensure the safety;
● Slave runway adjustable to cater for various wheel base vehicles;
● Single hydraulic cylinder hidden away under the runway
for Min exposure and Max reliable performance;
● ETL & CE Certified Power unit.

Tags:

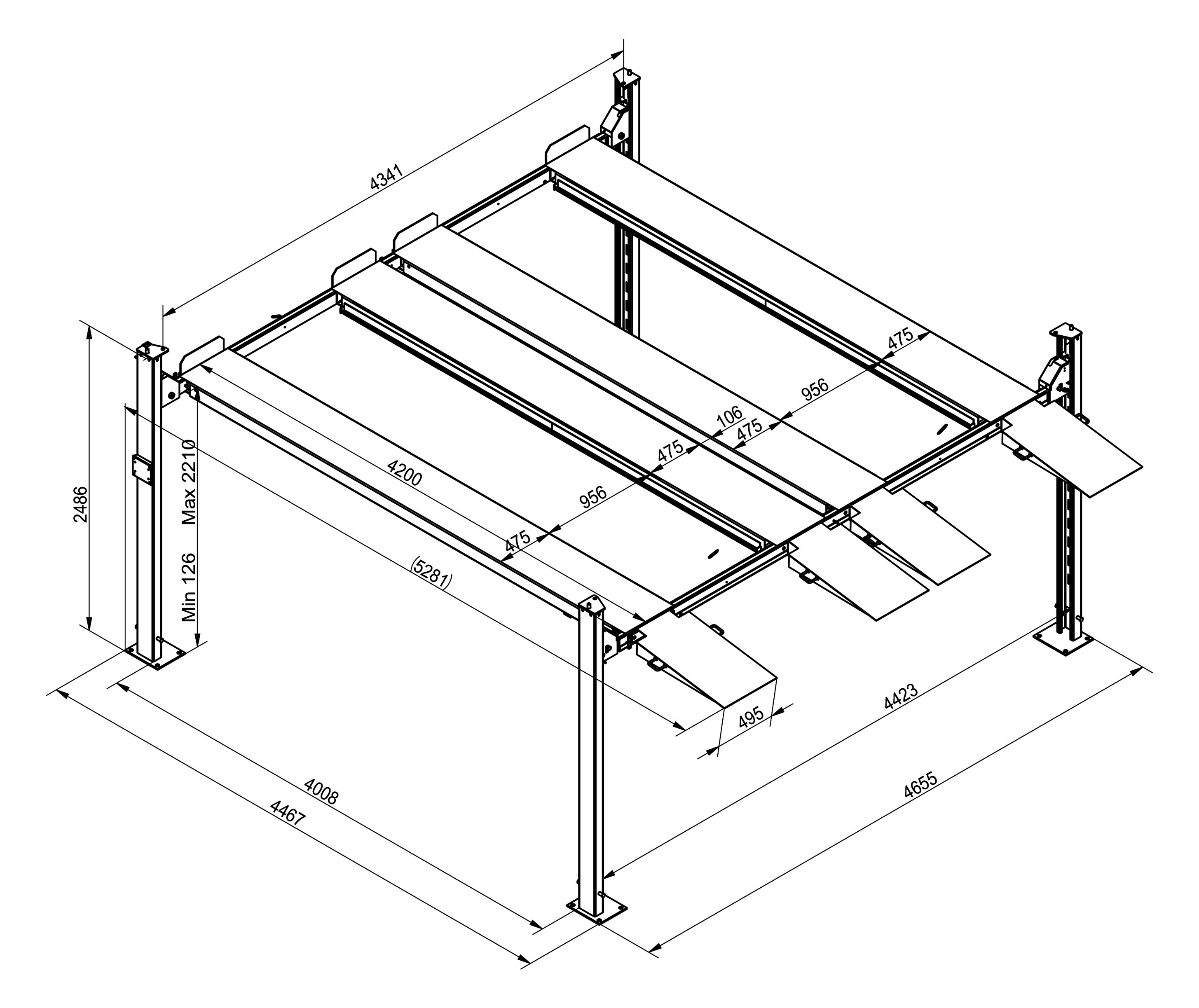

Technical parameter
Model:SXS3600H
Lifting Capacity: 3600KG
Lifting Height: 2190mm
Power of Motor:2.2KW
Oil Pressure:18Mpa
Power Supply:10-240V/380-415V 1/3PH, 50Hz/60Hz
Rise Time:50s
Lowering Time:40s
