SS9000

4.0T CAPACITY FOUR POST MOVABLEPARKING&SERVICE LIFT
Description
Technical data
Products Description

● 4Tons/9000LBS capacity,4318mm runway length;

● Outside slider, compact and elegant design;

● High quality power coating finish;

● Heavy duty, stainless lifting cables;

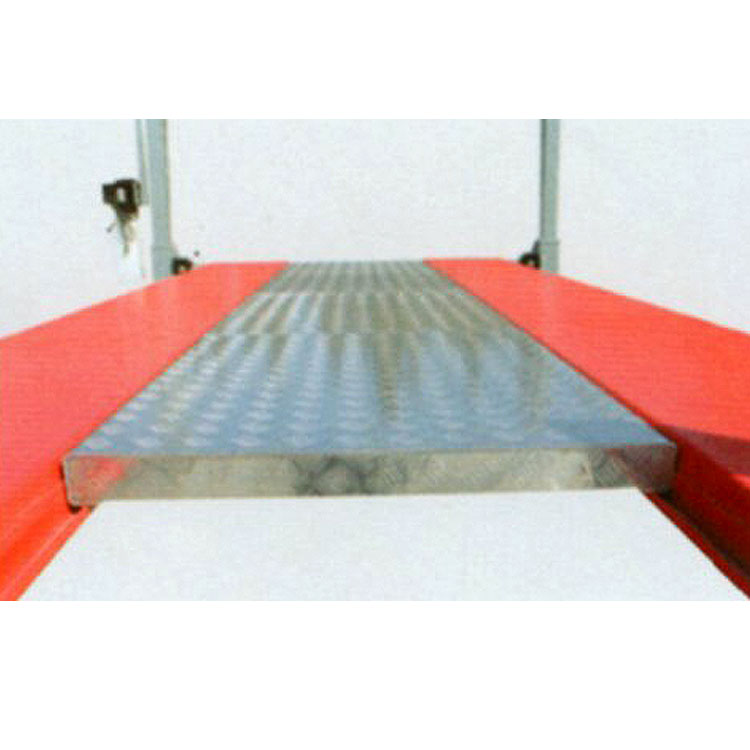

● ALU approaching ramps;

● Single point manual lock release, quite convenient to operate;

● Optional anti-surge valve in case of hydraulic hose burst;

● Cable anti-break device to double ensure the safety;

● Slave runway adjustable to cater for various wheel base vehicles;

● Multi-position locks allow runways to be leveled at any lock position;

● Single hydraulic cylinder hidden away under the runway for Min

   exposure and Max reliable performance;

● ETL & CE Certified Power unit.


Tags:

Technical parameter

Model:SS9000


Lifting Capacity: 4000KGS


Lifting Height:  1900mm


Secondary Lifting Height:350mm


Secondary Lifting Weight:2.0T




Power of Motor:2.2KW


Oil Pressure:18Mpa


Power Supply:10-240V/380-415V  1/3PH, 50Hz/60Hz


Rise Time:50s


Lowering Time:40s
