SXS10000

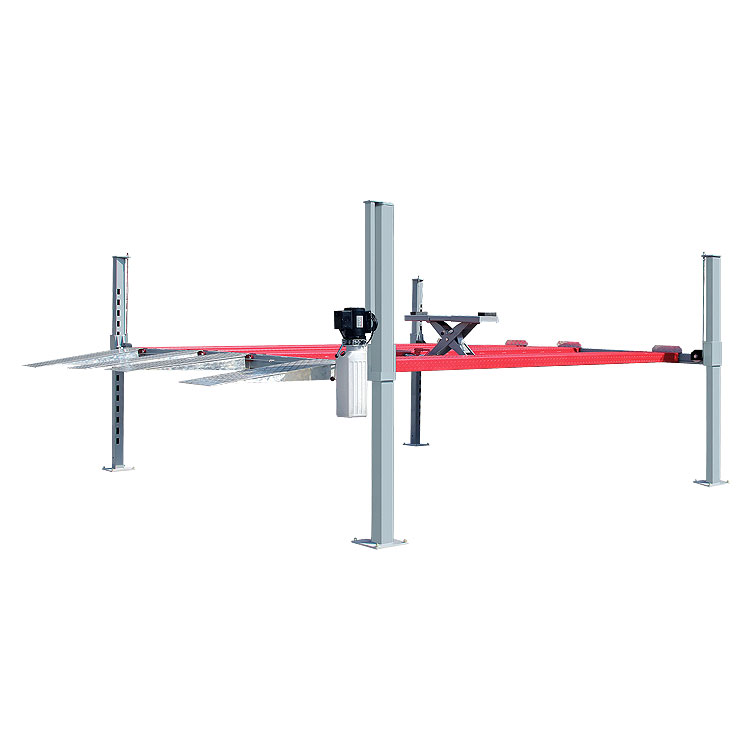

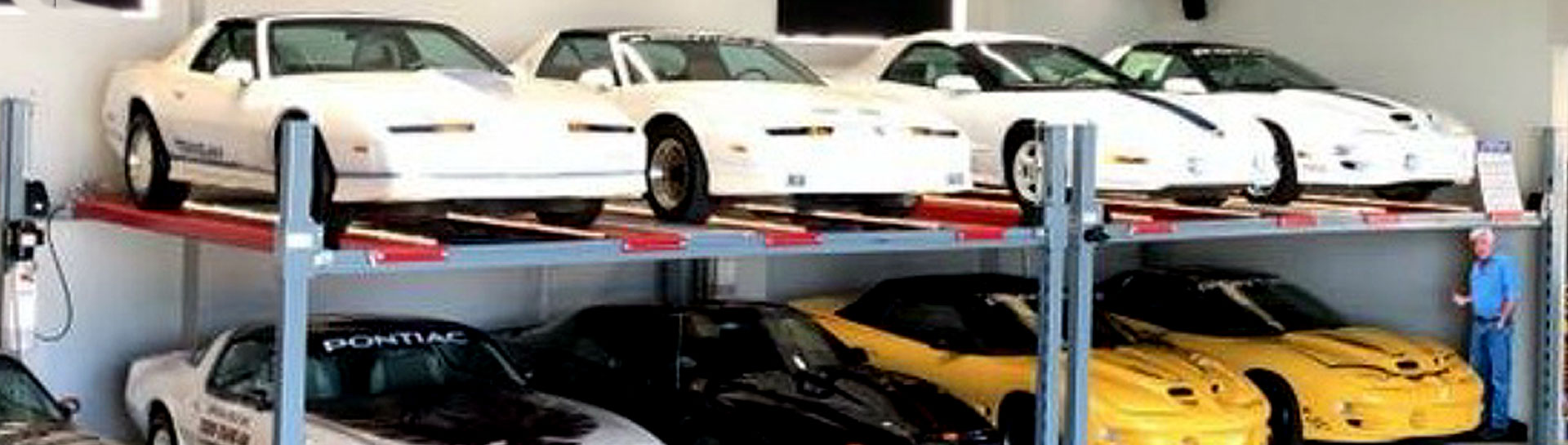

4.5T CAPACITY SIDE BY SIDE FOUR CARS PARKING & SERVICE LIFT
Description
Technical data
Products Description

● 4.5Tons/10000LBS capacity,4865mm runway length;

● Outside slider, compact and elegant design;

● High quality power coating finish;

● Heavy duty, stainless lifting cables;

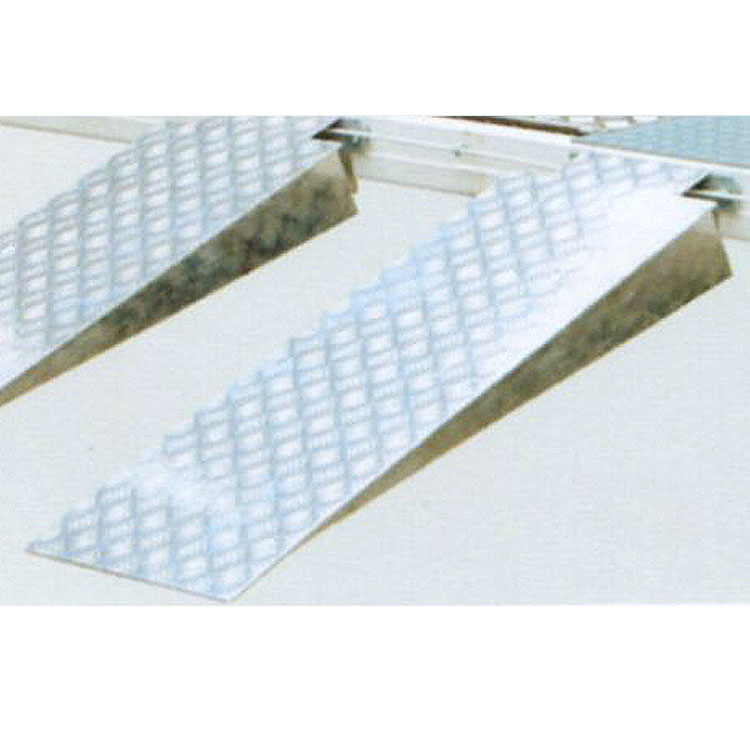

● ALU approaching ramps;

● Single point manual lock release, quite convenient to operate;

● Optional anti-surge valve in case of hydraulic hose burst;

● Cable anti-break device to double ensure the safety;

● Slave runway adjustable to cater for various wheel base vehicles;

● Multi-position locks allow runways to be leveled at any lock position;

● Single hydraulic cylinder hidden away under the runway for

   Min exposure and Max reliable perfomance;

● ETL & CE Certified Power unit.


Tags:

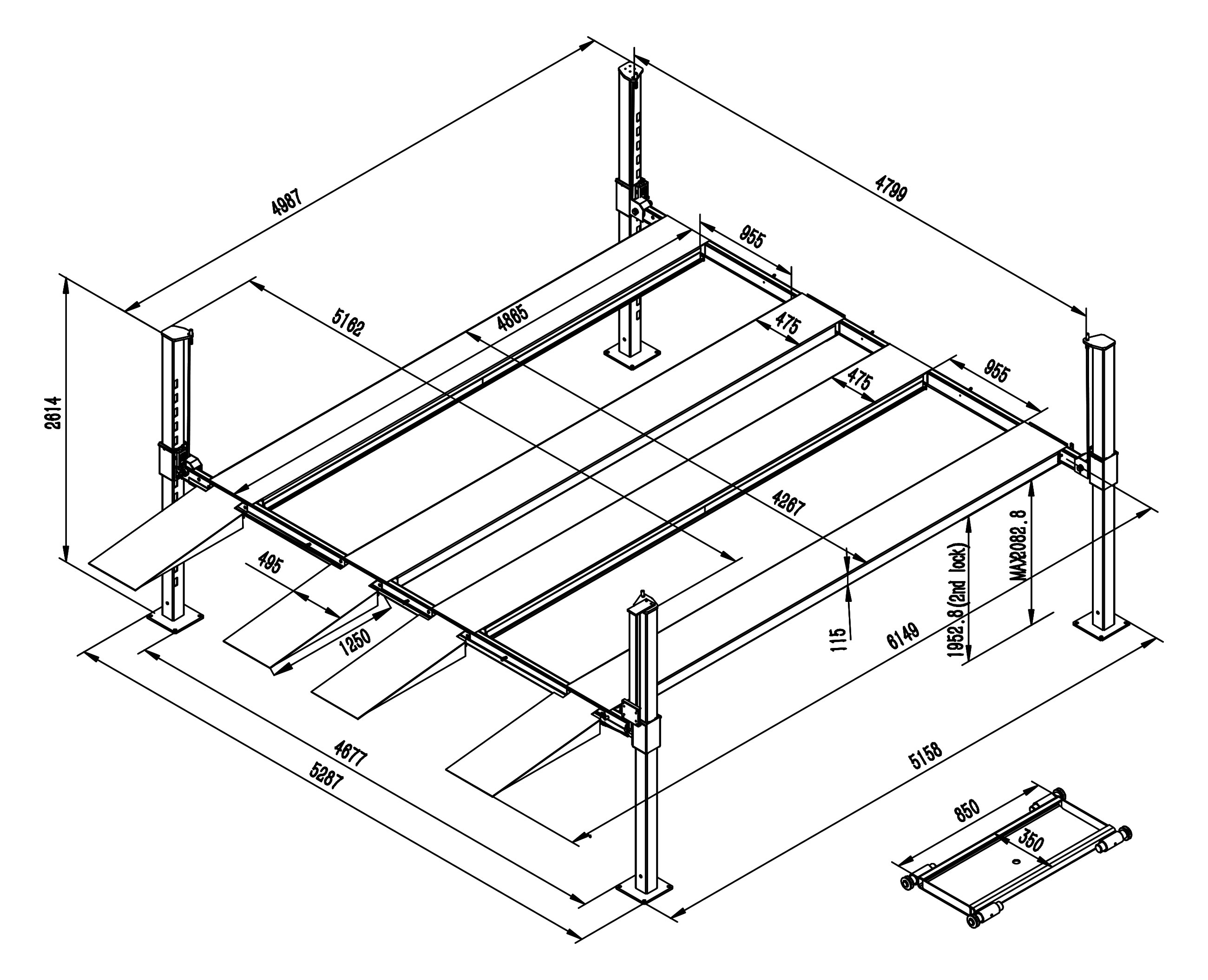

Technical parameter

Model:SXS10000

Lifting Capacity: 4500KGS

Lifting Height:  2082mm

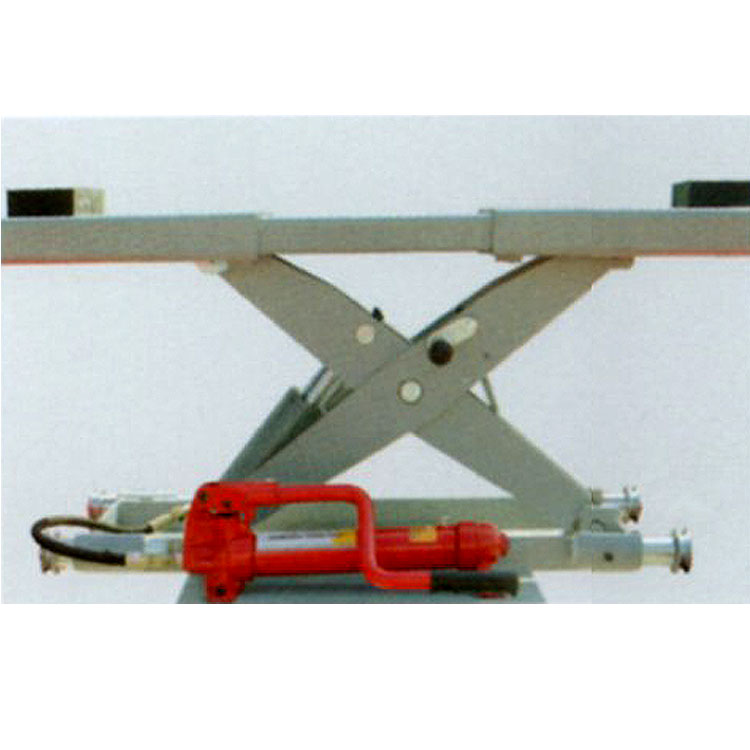

Secondary Lifting Height:350mm

Secondary Lifting Weight:2.0T


Power of Motor:3.0KW

Oil Pressure:18Mpa

Power Supply:10-240V/380-415V  1/3PH, 50Hz/60Hz

Rise Time:50s

Lowering Time:40s
