SS9000XLM

4.0T CAPACITY FOUR POST MOVABLEPARKING&SERVICE LIFT
Description
Technical data
Products Description

● 3.0Tons  capacity,4865mm runway length;

● Outside slider, compact and elegant design;

● High quality porwer coating finish;

● Heavy duty, stainless lifting cables;

● Pneumatic release, quite convenient to operate;

● Optional anti-surge valve in case of hydraulic hose burst;

● Cable anti-break device to double ensure the safety;

● Slave runway adjustable to cater for various wheel base vehicles;

● Multi-position locks allow runways to be leveled at any lock position;

● Single hydraulic cylinder hidden away under the runway for Min

   exposure and Max reliable perfomance;

● ETL and CE certified power unit.


Tags:

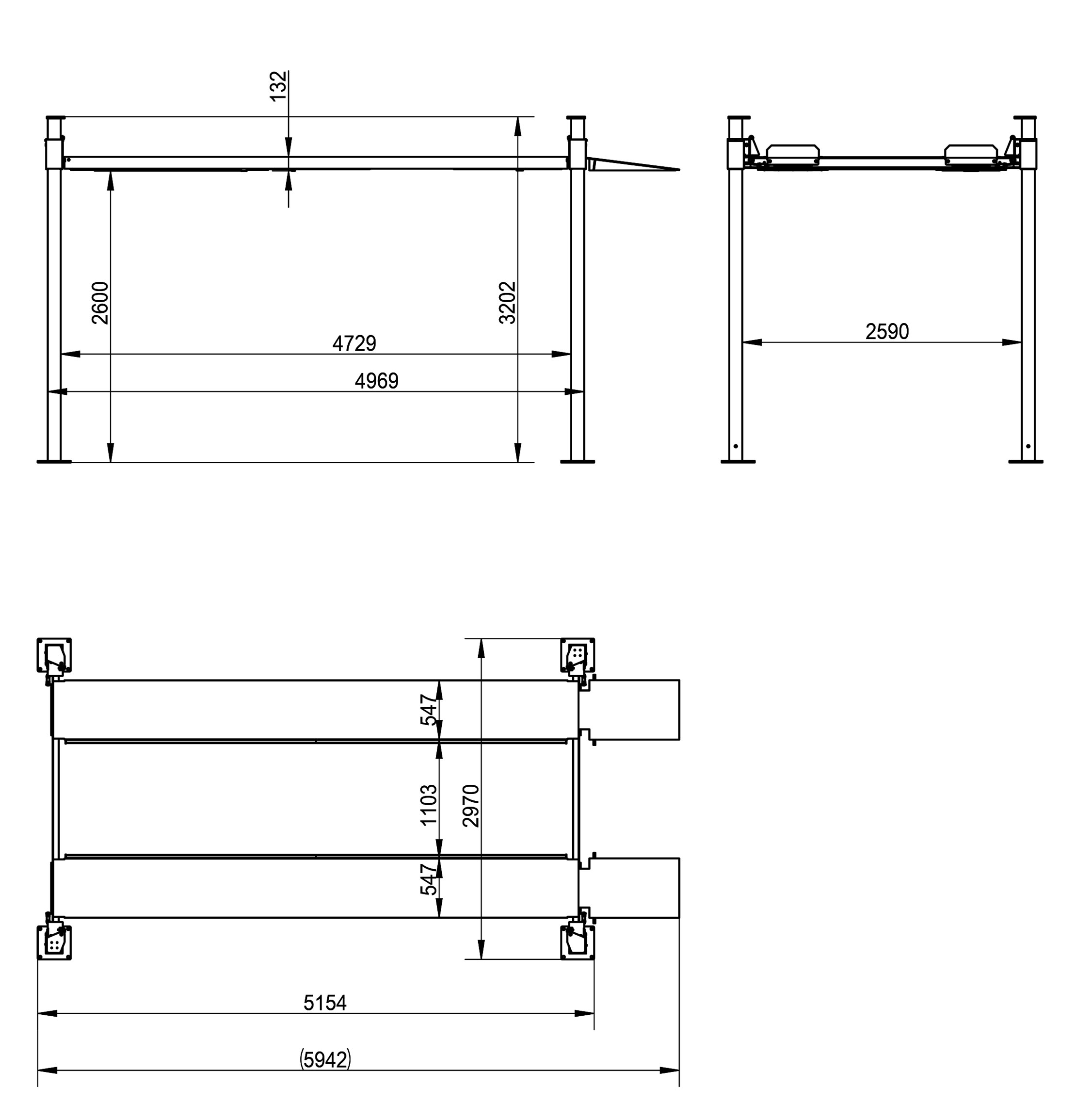

Technical parameter

Model:SS9000XLM


Lifting Capacity: 3000KG


Lifting Height:  2600mm





Power of Motor:2.2KW


Oil Pressure:18Mpa


Power Supply:10-240V/380-415V  1/3PH, 50Hz/60Hz


Rise Time:50s


Lowering Time:40s
